High Pressure Needle Jet Shower Pipe With Mechanical Oscillating Arrangement Complete

Technical Data

Hi-Pressure Shower Pipe with Mechanical Oscillating Arrangement Complete.

~ Working width (Cleaning)
~ Bearing Centre
~ Pipe Size and Material -2”Dia X Schd . 40 semi weld pipe S.S. 304
~ Type of Nozzle – Needle Jet
~ Nozzle Size  – 0.8 mm hole size
~ Between Nozzle Distance-
~ No . of Nozzle -5 to 10Kgs      –    ( Depend up own cleaning width )
~ Pressure at nozzle – 5 to 10 Kgs

Specification of Mechanical Oscillator for High Pressure Needle Jet shower.

- Type of Oscillation – General Motor Capacity : 0.30 H.P & KW : 0.25 with M.S. Stand  (Bonfliglioly)  – Italy Gear Box & Motor is standard ISO - Elcen

- Oscillating Stroke – 100mm to 200mm

- No .of Oscillating p.m. -0 to 8

- Support bracket matl. Specn. – M.S Fabricated with Nylon Roller.

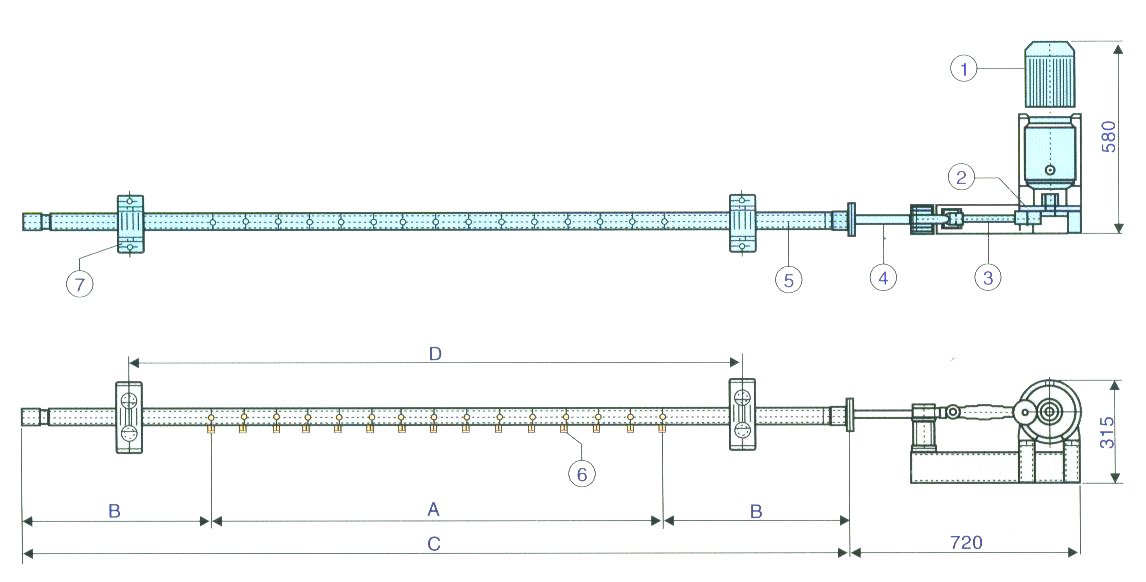

Oscillating Shower Assly

1. –  GEARED MOTOR
2. –  OSCILLATING DISC
3. –  CRANK LEVER
4. –  SLIDING ARM
5. –  SHOWER PIPE
6. –  NOZZLE
7. –  NYLON ROLLER WITH SUPPORT STAND
